Helps Stop the Spread of Germs

This touch free button applies NoTouch® technology which helps eliminate the spread of germs in any public building. To exit, a person must simply wave their hand in front of the device. The infrared will detect the motion and unlatch the time adjustable door.
Unit of Measure

Specifications

Brands

 N/A NoTouch®

Type

 N/A US Single-Gang, Open

Face Plate Construction Material

 N/A 304 Stainless Steel

Button Construction Material

 N/A Polycarbonate

Heavy-Duty Switch Plate and Back Box Thickness

 N/A 1.5 mm

Operating Temperature

 N/A 14 to 158 ºF-10 to 70 ºC

Mechanical Relay Operating Life

 N/A 1,000,000 cycles

Infrared (IR) Sensor Operating Life

 N/A 1,00,000 hours

Direct Current (DC) Operating Voltage

 N/A 12 to 24 V

Maximum Operating Direct Current (DC)

 N/A 45 mA

Maximum Slim Model Operating Current

 N/A 35 mA

Detection Range

 N/A 1.5 to 6 in4 to 15 cm

Adjustable Relay Latch Time

 N/A 0.5 to 20 sec

Dry Contact Current at 120 Volt (V) Alternating Current (AC) Voltage

 N/A 0.5 A

Dry Contact Current at 24 Volt (V) Direct Current (DC) Voltage

 N/A 1 A

Language

 N/A ES = Spanish FR = French

Accessories

Accessories

 N/A KIT-BB1SS - Surface mount back box for NoTouch® US Single Gang Stainless Steel Button

Key Features

General Information

 N/A
  • Ideal for public buildings of almost any kind.
  • State indicator LED - Standby/Active Red/Green (default) or selectable green/red.
  • Switch IP65.

Construction

 N/A Faceplate is constructed of medical/food grade 304 stainless steel.

Installation

 N/A Faceplate is slightly oversized to cover old installation marks.

Electronics

 N/A NoTouch® infrared detection.

Options

 N/A Available sizes
  • Slim/Mullion mount, back box included
  • US single-gang, back box available
  • US double-gang
  • European single-gang, back box available

Approvals and Warranty

Testing

 N/A It has been tested and approved or listed by:
  • Conformity European (CE)
  • UK Conformity Assessed (CA)

Warranty

 N/A One year guarantee on electro mechanical and electronic components.

How It Works

How It Works

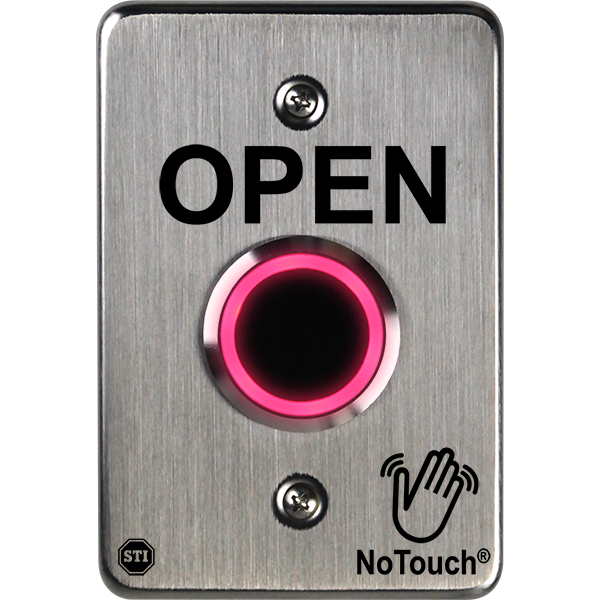

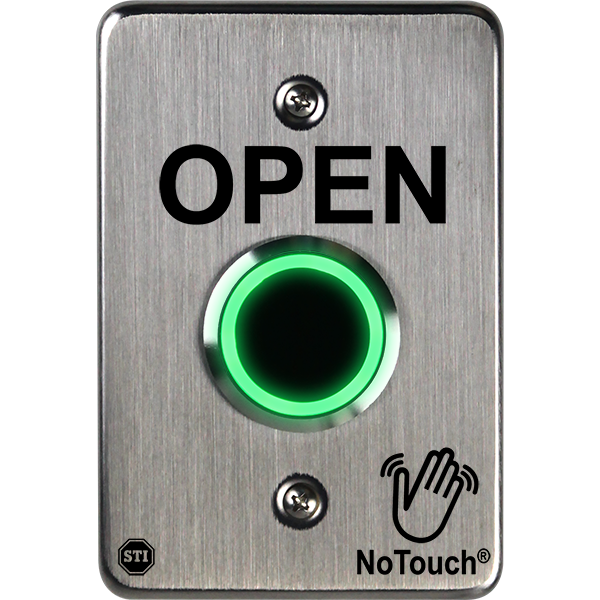

 N/A Buttons are shipped with the red light indicating standby, and it changes to green when active. Wave a hand in front of the red illuminated button and the color turns to green indicating the door released. Option for the opposite colors, green/standby and red/active, can be easily changed on site.

Features

Features

 N/A
  • NoTouch® infrared wave action
  • Allows user to exit a protected door without the touch of a button
  • To exit, person waves hand in front of the IR switch
  • Helps reduce the spread of germs
  • Faceplate constructed of medical/food grade 304 stainless steel
  • Dual color status LED (green/red)
  • Form "C" dry contact, 0.5A at 120VAC, 1A at 24VDC

Additional Information

Additional Information

 N/A The button is constructed of corrosion resistant stainless steel, allowing it to take tough knocks in stride. Also, the faceplate is slightly oversized for retrofit applications to cover marks from a previous install. This durable and long lasting button is easily installed within minutes right on site.

NoTouch® Stainless Steel Button offers three standard models: OPEN, EXIT and the international exit symbol representing a person exiting. Custom models are also available with printing capabilities at STI’s corporate and international offices.
