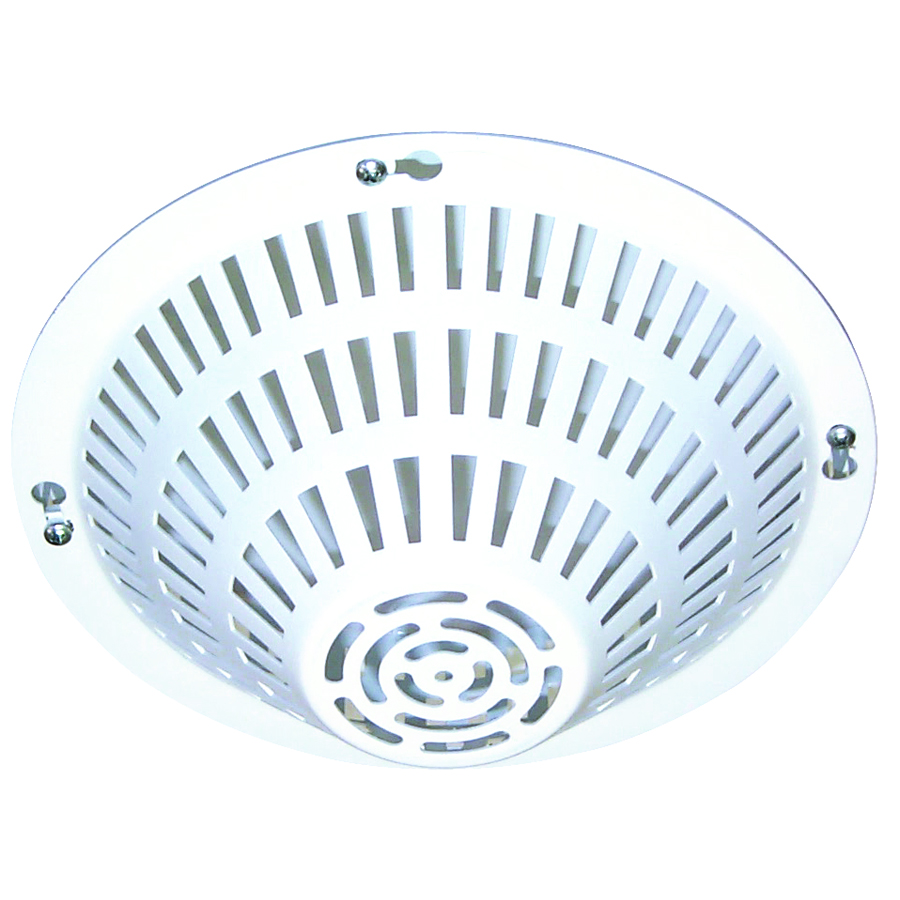

Here is a protective cover for persons who prefer the strength and durability of steel but need not be concerned with the presence of food in the area. Fabricated from 1.5 mm cold rolled steel, it has a white corrosion-resistant polyester coating. As the stainless steel cover, it is available for flush mount (STI-8200-W) or with a spacer for surface mount (STI-8230-W) applications. Surface models include tamper-resistant fasteners for added protection against vandalism. Tamperproof fasteners are available for flush models.

Easy to install protective covers help assure smoke detectors will remain operational where vandalism and accidental damage are causing false fire alarms or high maintenance costs.

Polycarbonate models are offered in clear, black or white. Steel models are offered in stainless steel or white coated.
Unit of Measure

Specifications

Model Type

 N/A Smoke Detector Damage Stopper Flush Mount, White Coated Steel

Color

 N/A White

Application

 N/A Polycarbonate Protection

Dimensions

Overall Width

 N/A 9 in228 mm

Overall Height

 N/A 5 in127 mm

Spacer Height

 N/A 2 in51 mm

Cover Height

 N/A 3 in76 mm

Cover Thickness

 N/A 1.5 mm

Approvals and Warranty

Warranty1 N/A 3 y

Testing

 N/A STI-8200 models are UL Listed (No. S3504) for use with no sensitivity adjustment with the following smoke detectors:

System Sensor 2251, 2251T, 2251B, 2251TB, 2251TM, 2251TMB, 2251BR, 2551, 2551T Smoke Detectors, FCI Model ASD-PL, ASD-P, ASD-PH, ASD-PTL, ASD-FILTREX, ASD-FILTREXF, MCSACCLIMATE, ASD-PL2, ASD-PL2F, ASD-PTL2, ASD-PTL2F, MCDACCLIMATE2, MCS-ACCLIMATE2F, ASD-PL2FR, Secutron Model MRI-2251, EST Model 2251F, Mircom Model MIX-2251, Intelligent Systems Model ISL 2251, and Honeywell Model TC806B1001.

Key Features

General Information

 N/A
  • Covers protect against severe vandalism and accidental damage.
  • Helps assure smoke detectors will be operational when needed.

Design

 N/A
  • Aesthetically pleasing.

Construction

 N/A
  • Exceptional durability.

Installation

 N/A
  • Easy installation and easy removal for servicing detectors.

Options

 N/A Available conduit spacers allow them to be easily mounted over surface mount detectors with or without conduit
Choice of stainless steel, coated cold rolled steel or polycarbonate

Accessories

Accessories

 N/A STI-8171 - Mounting backplate for flush and surface mount models. Recommended for irregular and unstable mounting surfaces such as drop ceilings and beams
STI-8201-SS - Stainless steel spacer for conduit applications
STI-8201-W - Cold rolled steel spacer for conduit applications
KIT-82 - Tamper-proof stainless steel screws for flush mounted covers
KIT-19038 - Tamper bit for KIT-82
  • 1 Three year guarantee against breakage in normal use.
