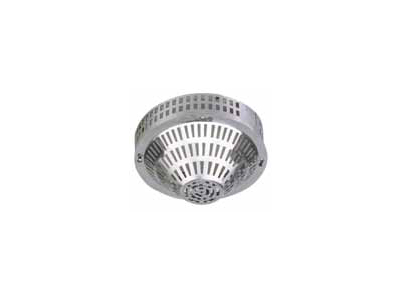

This heavy-duty, 1.2 mm stainless steel cover features a natural resistance to corrosion making it an excellent choice for applications where food is present as well as water treatment plants and correctional facilities. Available for flush mount (STI-8200-SS) or with a conduit spacer for surface mount (STI-8230-SS, shown) applications. Easy to install, it helps assure the smoke detector will remain operational where vandalism and accidental damage are causing false fire alarms or high maintenance costs.

Easy to install protective covers help assure smoke detectors will remain operational where vandalism and accidental damage are causing false fire alarms or high maintenance costs.

Polycarbonate models are offered in clear, black or white. Steel models are offered in stainless steel or white coated.
Unit of Measure

Specifications

Model Type

 N/A Smoke Detector Damage Stopper with Conduit Spacer Surface Mount, Stainless Steel

Application

 N/A Polycarbonate Protection

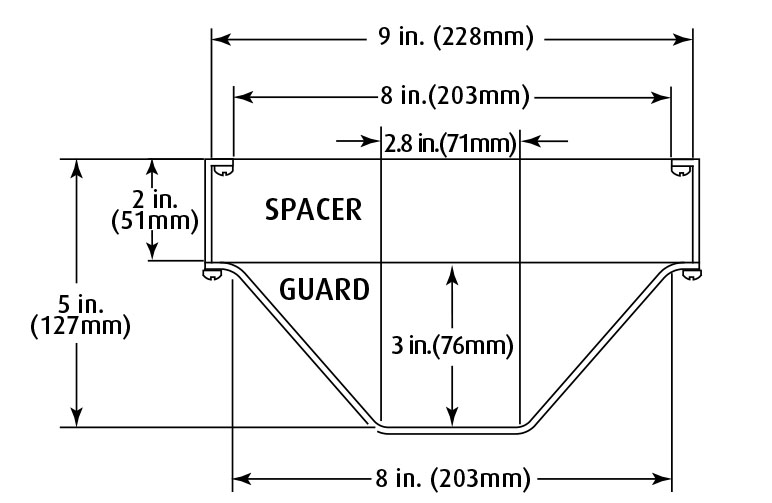

Dimensions

Overall Width

 N/A 9 in228 mm

Overall Height

 N/A 5 in127 mm

Spacer Height

 N/A 2 in51 mm

Cover Height

 N/A 3 in76 mm

Cover Thickness

 N/A 1.2 mm

Approvals and Warranty

Warranty1 N/A 3 y

Testing

 N/A STI-8230 (cover and spacer) models are UL Listed (No. S3504) for use with no sensitivity adjustment with the following smoke detectors:

System Sensor Model 2251, 2251T, 2251B, 2251TB, 2251TM, 2251TMB, 2251BR, 2551, 2551T, FCI Model ASD-PL, ASD-P, ASD-PH, ASD-PTL, ASD-FILTREX, ASD-FILTREXF, MCS-ACCLIMATE, ASDPL2, ASD-PL2F, ASD-PTL2, ASD-PTL2F, MCD-ACCLIMATE2, MCSACCLIMATE2F, ASD-PL2FR, Secutron Model MRI-2251, EST Model 2251F, Mircom Model MIX-2251, Intelligent Systems Model ISL 2251,or Honeywell Model TC806B1001.

Key Features

General Information

 N/A
  • Covers protect against severe vandalism and accidental damage.
  • Helps assure smoke detectors will be operational when needed.

Design

 N/A
  • Aesthetically pleasing.

Construction

 N/A
  • Exceptional durability.

Installation

 N/A
  • Easy installation and easy removal for servicing detectors.

Options

 N/A Available conduit spacers allow them to be easily mounted over surface mount detectors with or without conduit
Choice of stainless steel, coated cold rolled steel or polycarbonate

Accessories

Accessories

 N/A STI-8171 - Mounting backplate for flush and surface mount models. Recommended for irregular and unstable mounting surfaces such as drop ceilings and beams
STI-8201-SS - Stainless steel spacer for conduit applications
STI-8201-W - Cold rolled steel spacer for conduit applications
KIT-82 - Tamper-proof stainless steel screws for flush mounted covers
KIT-19038 - Tamper bit for KIT-82
  • 1 Three year guarantee against breakage in normal use.
