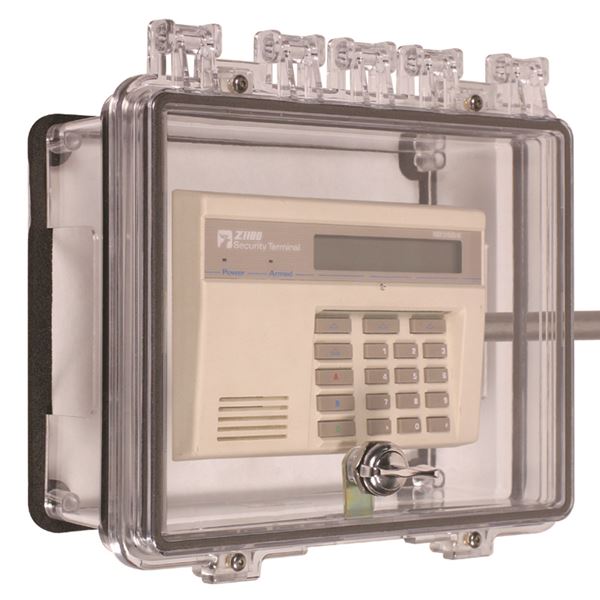

Multipurpose lockable enclosure for a wide range of larger size devices, components and instruments, such as keypads, annunciators and automated external defibrillators (AEDs) which require protection from vandalism, accidental damage, as well as the elements, such as dirt and grime. Spacers, integrated hinge and covers are formed from tough polycarbonate material. The polycarbonate enclosures are backed by a three year guarantee against breakage and damage in normal use. STI enclosure is lockable with either a thumb lock.
Unit of Measure

Specifications

Lock Type

N/A Internal Thumb Lock

Back Box Type

N/A Open Conduit Back Box, Surface Mount Applications

Working Temperature

N/A -40 to 250 ºF-40 to 121 ºC

Flammability Rating

N/A 94V-2

Application

N/A Polycarbonate Protection

Dimensions

Overall Width

N/A 9.91 in

Overall Height

N/A 9.33 in

Dimension G

N/A 7.73 in

Dimension H

N/A 5.40 in

Dimension K

N/A 5.70 in

Dimension L

N/A 2.79 in

Approvals and Warranty

Warranty1 N/A 3 y

Industry Standards

N/A The STI-7500 series only has been tested and approved or listed by :
  • Underwriters Laboratories (UL)/ Canadian Underwriters Laboratories(cUL) Listed No. S7255

Key Features

General Information

N/A
  • Protection for large units against physical damage, grime and severe environments.
  • Can be used over volume or lighting controls.
  • Each protected unit can be clearly seen and quickly identified.

Construction

N/A
  • Cover, integrated hinge and spacers are formed from tough polycarbonate material.

Installation

N/A
  • Fast and easy installation.
  • Mounting hardware and gaskets are included.
  • Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).

Options

N/A
  • Key or thumb lock available.

Accessories

Accessories

N/A KIT-H18054 - Two replacement keys #CH751
STI-1283 - Backplate

Notice

Notice

N/A STI recommends replacement of gaskets every five years for outdoor applications.
  • 1 Three year guarantee against breakage of polycarbonate in normal use
