Multipurpose cabinets for remote AED (Automated External Defibrillator) units, which require physical or environmental protection. Helps guard against vandalism (accidental or intentional), as well as dirt, dust and grime. Cabinets mount on the wall enabling the unit to be stored in a central location. The cabinets are available with a thumb lock, which helps deter wrongful users from the unit and has an additional eyelet for a secondary safety seal.
Unit of Measure

Specifications

Model Type

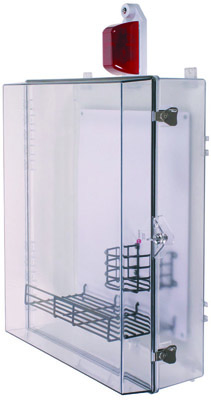

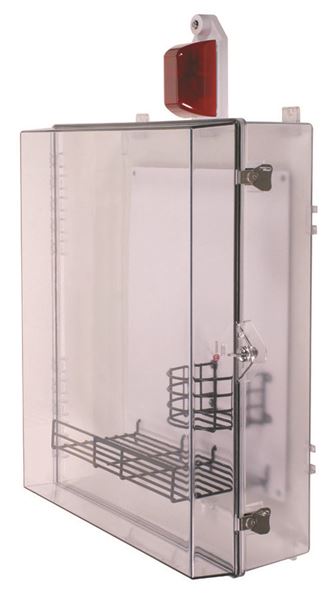

 N/A Polycarbonate Cover with Backplate, Wire Shelf, Thumb Lock and Siren/Strobe Alarm

Working Temperature

 N/A -40 to 250 ºF-40 to 121 ºC

Additional Eyelet Diameter

 N/A 5/8 in
Warranty1 N/A 3 y

Application

 N/A Automated External Defibrillator (AED) Polycarbonate Protection

Dimensions

Dimension A

 N/A 19.75 in502 mm

Dimension B

 N/A 24.75 in629 mm

Dimension C

 N/A 7.31 in186 mm

Dimension D

 N/A 27.5 in699 mm

Dimension E

 N/A 35 in889 mm

Material

Material

 N/A Clear Polycarbonate

Key Features

General Information

 N/A
  • Multipurpose polycarbonate cabinets help protect remote AED units against physical or environmental protection.
  • Includes a coated steel internal mounting plate with a baked on white enamel finish.
  • Includes thumb lock and adjustable wire shelf.
  • Unlike metal cabinets, this version offers safe, rounded corners. It does not dent and there is no worry of paint chips.

Design

 N/A
  • Additional eyelet can be used for secondary safety seal.
  • Design allows visibility at almost any angle and does not require a sign.

Construction

 N/A
  • Clear polycarbonate; constructed from the same material used in football helmets.

Installation

 N/A
  • External mounting tabs or internal drill dimples.
  • Complete with mounting hardware and gasket. Tamperproof mounting screws available.
  • Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).

Options

 N/A
  • Cabinet is available without alarm, with external siren alarm or siren/ strobe alarm
STI-7555AED Series :
  • Siren/strobe alarm is a combination of alarm and super bright flashing LEDs
  • Independent strobe and siren timing of 15 seconds, 30 seconds, 60 seconds or continuous.
  • Siren offers 32 tones
  • Alarm has a low battery indicator and is powered by a 9 V DC alkaline battery (not included) or external 12 to 13 volts

Accessories

Accessories

 N/A KIT-65 - Optional breakaway ties (5 included)
AED-LBL - Optional AED Label -2 included (applied to sides of cabinet; factory installed only)
STI-6453AED - Replacement siren alarm
STI-SA5000-R - Replacement audio visual alarm
KIT-SA505 - Replacement key switch mounting plate for audio visual alarm
M05050-R - Replacement lens red (also available in amber, blue, green or white)
KIT-W07550 - Wire shelf for STI-7550 series (included)
KIT-W07551 - Wire oxygen rack for STI-7550 series (included with STI-7551, STI-7553, STI-7555)
KIT-H18075 - Replacement Key for siren/strobe alarm
KIT-H19032 - Replacement Key #2341 for siren alarm

How It Works

How It Works

 N/A Cabinets are constructed of clear polycarbonate which allows the unit within to be highly visible from almost any angle. They are molded from the same material used in football helmets. When the cabinet is opened the optional alarm emits an ear piercing siren. The siren/strobe alarm is a combination of alarm and super bright flashing LEDs (shown right). It offers independent strobe and siren timing of 15 seconds, 30 seconds, 60 seconds or continuous. The siren alarm (shown left) emits for 30 seconds, 3 minutes or continuously (as preset by user). A key override will silence the alarm.
  • 1 Three year guarantee against breakage of polycarbonate in normal use (one year on electromechanical and electronic components)
