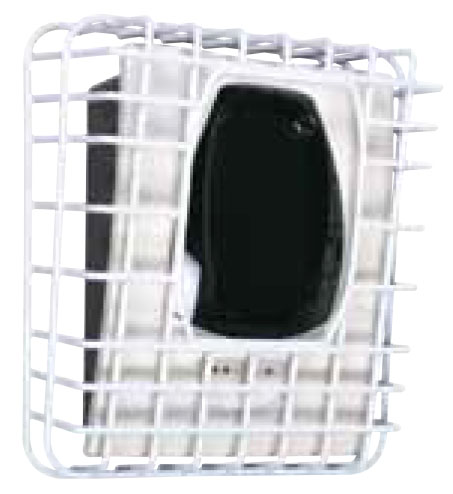

Five models are offered to protect the vital sensor units of projected beam type smoke detectors in large areas (such as gymnasiums, warehouses and auditoriums). STI Beam Smoke Damage Stoppers are designed to protect both transmitter and receiver sensors. Installation is simple with anchors and screws provided.
Unit of Measure

Specifications

Model Type

 N/A Beam Smoke Damage Stopper - Flush Mount for System Sensor 1224
Warranty1 N/A 3 y

Application

 N/A Wire Guards

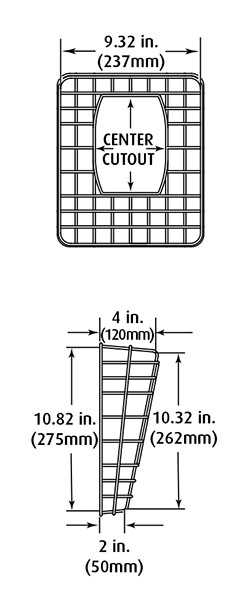

Dimensions

Height

 N/A 10.82 in275 mm

Width

 N/A 9.32 in237 mm

Depth

 N/A 4 in120 mm

Key Features

General Information

 N/A
  • Protection against misalignment and false fire alarms.

Design

 N/A
  • Designed to protect both transmitter and receiver units (sold individually).

Construction

 N/A
  • Super tough construction of 9-gauge coated steel wire makes guards extremely difficult to break.
  • Coated with a tough, corrosion resistant polyester shell.

Installation

 N/A
  • Fast and easy installation.
  • May be painted once prior to installation.

Options

 N/A
  • Five sizes available.

Accessories

Accessories

 N/A KIT-82 - Tamper resistant stainless steel screws, #8 x 1-1/2 in. snake eye
KIT-19038 - 5/16 in. hex drive tamper bit for tamper resistant screws

Additional Information

Additional Information

 N/A Backed by a Three Year Guarantee
As all STI protective covers, Beam Smoke Damage Stoppers are backed by a three year guarantee against breakage in normal use. They are constructed of 9-gauge, welded steel wire coated with a tough, corrosion resistant polyester shell.
  • 1 Three year guarantee against breakage in normal use
