Accepted by many fire marshals, these versions of the world famous STI Stopper II® are designed for areas where a "break glass" cover is specified, such as unsupervised areas. Each device consists of a red polycarbonate cover, mounting frame, a pane of single-strength clear glass (easily replaced when broken), a glass-breaking bar, screws and anchors for installation. Gaskets are also available to improve weather resistance.
Unit of Measure

Specifications

Model Type

 N/A Break Glass Stopper® - Large

Operating Temperature

 N/A -40 to 121 ºC-40 to 250 ºF

Application

 N/A Fire Products
Warranty1 N/A 3 y

Dimensions

Overall Width

 N/A 6.25 in159 mm

Overall Height

 N/A 9 in229 mm

Overall Depth

 N/A 1.5 in38 mm

How It Works

How It Works

 N/A Three models are available for fire, the smaller STI-6100, the larger STI-4100 and the STI-4130 for surface mount; the STI-4130 is the KIT-900-R conduit spacer and the STI-4100, the spacer will add two inches of depth and accommodate up to 3/4 conduit. A fourth "generic" model (STI-6700) is available to cover devices other than manual pull stations. The same size as the STI-6100, it includes a wall mount hanging clip for keys, etc. This model for non-fire applications simply says, "BREAK GLASS"."

Key Features

General Information

 N/A
  • Fire alarm remains clearly visible and accessible.
  • Aesthetically appealing.
  • Fast, easy installation.
  • Accepted by many fire marshals. Obtain local fire marshal approval prior to installation.

Design

 N/A
  • Glass replacement is simple. Suggestion: Order extra panes with each unit, for immediate replacement.

Construction

 N/A
  • Housing is molded of tough polycarbonate material.

Installation

 N/A
  • Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).

Options

 N/A
  • Gaskets available to improve weather resistance.

Accessories

Accessories

 N/A Several accessories are available for the Break Glass Stopper®. They include a polycarbonate mounting backplate (recommended for all installations with irregular mounting surfaces), additional spacer for stations with greater depth or exposed conduit and tamperproof screws (STI-4100 only).
KIT-08 - Replacement Break Glass Tool
KIT-10 - Replacement Glass for STI-4100

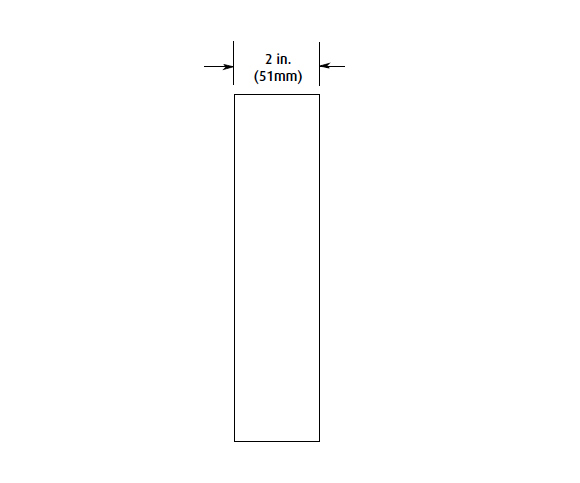

KIT-900-R - 2 in. Conduit Spacer (red) for STI-4100
KIT-6702 - Tamperproof Screw Kit
STI-3002 - Weather Gasket - large (Gaskets may need to be trimmed prior to installation)
STI-3003 - Conduit Gasket 1/2 in.
STI-6501 - Weather Gasket - small (Gaskets may need to be trimmed prior to installation)

Note

Note

 N/A Local fire marshal approval should be obtained prior to installation.
Glass is clear - only appears dark for photo purposes.
  • 1 Three year guarantee against breakage of polycarbonate in normal use.
