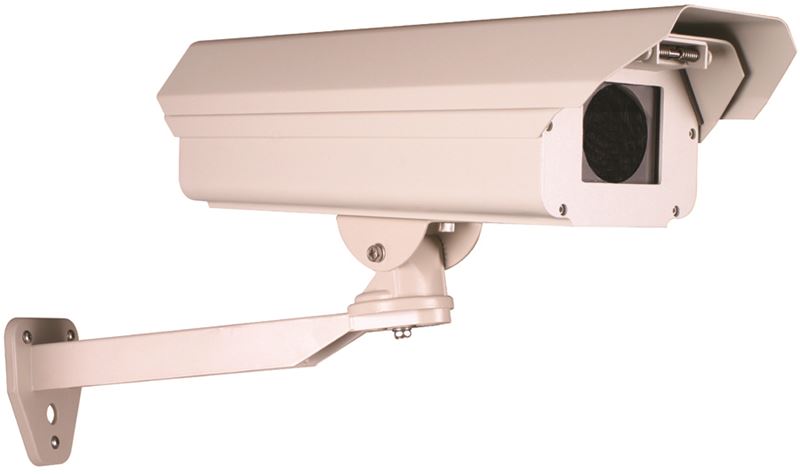

Here's a way to protect your CCTV camera from vandalism and tampering. The additions to our Stopper® Line of products are available in aluminum or die-cast aluminum. Models are available in different versions. One version consists of the sturdy housing unit, another version includes housing, heater, blower and sun shield. The sunshield can reduce internal temperature by 4 ºF (2 ºC). All units include mounting bracket.

The Universal Pole Mount Bracket's stainless steel bands are adjustable allowing it to be mounted to 2-1/4 inch to 4-1/2 inch diameter poles. Multiple hole patterns allow use with various camera mounts. Can be easily modified for additional pole mounting applications.
Unit of Measure

Specifications

Model Type

 N/A CCTV Housing - aluminum with heater, blower, sun shield and mounting bracket

Overall Length

 N/A 14.87 in378 mm

Minimum Grip Diameter

 N/A 0.24 in6 mm

Maximum Grip Diameter

 N/A 0.41 in10 mm

Material Thickness

 N/A 0.22 in

Application

 N/A Theft Prevention

Dimensions

Overall Height

 N/A 4 in102 mm

Overall Width

 N/A 5.12 in130 mm

Material

Material

 N/A Sturdy aluminum or die-cast aluminum

Approvals and Warranty

Warranty

 N/A 1 y

Key Features

General Information

 N/A
  • All models contain mounting bracket and camera housing.

Design

 N/A
  • Models with sun shield can reduce internal temperature by 4 ºF (2 ºC).

Construction

 N/A
  • Sturdy aluminum or die-cast aluminum (0.22 in. thick).

Installation

 N/A
  • Easy access for servicing and installation.

Options

 N/A
  • Spring assisted forward opening lid.
  • Includes two cord grips on bottom of enclosure - diameter minimum x 0.24 Inch (in) (6 Millimeter (mm)), maximum x 0.41 Inch (in) (10 Millimeter (mm))
  • Rear link-lock latch
  • One year warranty on enclosure, bracket and electronics under normal use

Accessories

Accessories

 N/A STI-7001 - Sun shield for STI-7000K and STI-7100K
STI-7071 - Mounting Bracket
STI-7081 - Universal Pole Mounted Bracket
R01710 - Replacement lens for STI-7000K and STI-7100K
