These easy to install kits are the answer for protecting expensive electronic units that must be installed in low temperature areas, indoors or outdoors. In addition to assuring continued operation of protected units, they also keep LCD’s from becoming sluggish and help them stay visible.
Unit of Measure

Specifications

Model Type

 N/A 24 Volt (V) Heater Kit

Operating Temperature

 N/A -5 to 5 ºC23 to 41 ºF

Available Voltage

 N/A 24 V

Capacity

 N/A 8 W

Current

 N/A 0.5 A

Thermostat Active

 N/A Opens at 23°F and closes at 41°F (-5°C to 5°C) Creep action thermostat

STI-6583 Power

 N/A 24 Volt 8 Watts (0.5 amp) AC or DC power supply not included
Warranty1 N/A 1 y

Heater Pad Size

Heater Pad Width

 N/A 5-1/2 in

Heater Pad Height

 N/A 4 in

Thermostat Size

Thermostat Width

 N/A 3/4 in

Thermostat Height

 N/A 1/4 in

Thermostat Depth

 N/A 3/16 in

Key Features

General Information

 N/A
  • Allows critical electronic components to operate at low temperatures.
  • Keeps electronic components warm when mounted in a protective keypad cover. Results may vary based on installation and enclosure used.
  • Temperature controlled.
  • Keeps LCD's from becoming sluggish and helps them stay visible at freezing temperatures.
  • One (1) year warranty from the date of original purchase.

Installation

 N/A
  • Easy to install self-adhesive heater pad.

Electronics

 N/A
  • Thermostat opens at 23º and closes at 41 ºF (-5º to 5 ºC).
  • 12-volt model available.

How It Works

How It Works

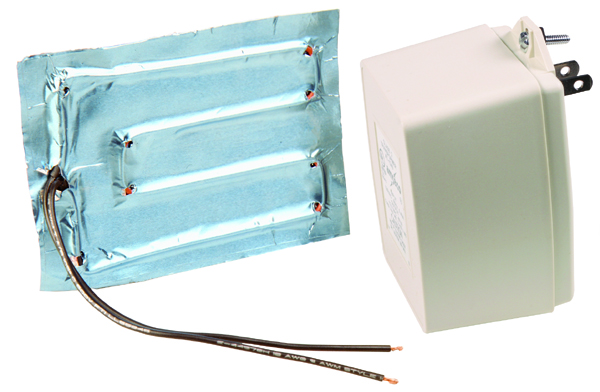

 N/A The 24-volt system (STI-6583) is designed to get its power directly from a remote power supply (other than the fire panel) or CCTV power source and is rated at 8 watts. STI-6583 systems include a foil heater pad with adhesive backing and a thermostat. STI Heater Kits operate in conjunction with enclosures such as the STI Stopper II® and Universal Stopper® to protect and help expensive electronic components remain operable in low temperature areas.

Note

Note

 N/A Keeps electronic components warm when mounted in a protective cover or enclosed space. Results may vary based on installation and enclosure used. Not polarity sensitive components.
  • 1 One year Warranty from the date of Original Purchase
