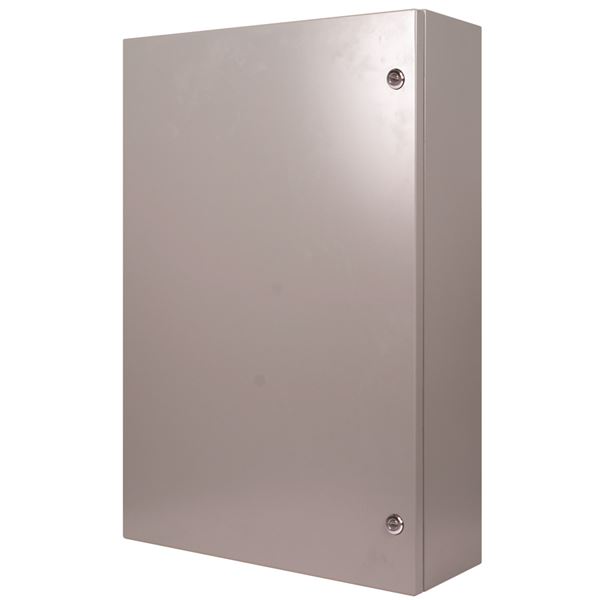

These enclosures for electrical and electronic equipment (up to 1000 V) provide personal protection from hazardous parts and provides a degree of protection to enclosed equipment. EM models are constructed for indoor use. All enclosures offer protection against vandalism, either accidental or intentional. The size allows the enclosures to house significantly sized electronic devices with space to spare. Enclosures mount to the wall enabling units to be protected in their designated location.

They have a durable finish to help protect against corrosion.
Unit of Measure

Specifications

Model Type

 N/A Metal Protective Cabinet without Window (A/C or heat options available, also available without window)

Application

 N/A Polycarbonate Protection

Dimensions

Height

 N/A 36 in914 mm

Width

 N/A 24 in610 mm

Depth

 N/A 8.79 in161 mm

Material

Material

 N/A Heavy-duty enclosures are constructed with a powder coated metal to help protect against corrosion

Air Conditioner (AC)/Heater

Heater Width

 N/A 6.35 in161 mm

Heater Height

 N/A 15.75 in400 mm

Backplate Width

 N/A 22 in559 mm

Backplate Height

 N/A 34 in864 mm

Output Energy

 N/A 800 Btu

Heater Power

 N/A 150 W

Operating AC Voltage

 N/A 115 V

Operating AC Voltage (1 Phase)

 N/A 240 V

Current

 N/A 3.6 A

Frequency

 N/A 60 Hz

Frequency (1 Phase)

 N/A 50 Hz60 Hz

AC/Heater Weight

 N/A 27 lb12.25 kg

Housing Dimensions

Unit Housing Width

 N/A 21 in533 mm

Unit Housing Height

 N/A 33 in838 mm

Unit Housing Depth

 N/A 6 in152 mm

Enclosure

Enclosure Weight

 N/A 47.5 lb21.55 kg

Backplate

Backplate Weight

 N/A 23 lb10.43 kg

Approvals and Warranty

Warranty1 N/A 2 y

Testing

 N/A
  • UL Listed, Type 4

Key Features

General Information

 N/A
  • Can be used in all wiring applications as a junction, splice or power supply cabinet

Design

 N/A
  • Cost effective, low maintenance and compact design.
  • Continuous piano type hinge.

Construction

 N/A
  • Heavy-duty enclosures are constructed with a powder coated metal to help protect against corrosion.
  • Metal thickness meets or exceeds Type 1 requirements.

Installation

 N/A
  • Enclosures mount to the wall enabling units to be protected in their designated location.

Options

 N/A
  • Thumb or key lock (option sold separately).
    EM Models:
  • Backplate (sold separately) may be mounted into cabinet.
  • Back design helps accommodate uneven walls or mounting surface.
  • Top, side and bottom knockouts are 1/2 Inch (in) and 3/4 Inch (in).
  • UL, cUL Listed, Type 1 (see approvals)
    • 7560/7561 Models:
  • UL Listed, Type 4.
  • Includes backplate and two 1/4 turn latches.
  • 1 Two year guarantee on electromechanical and electronic components
