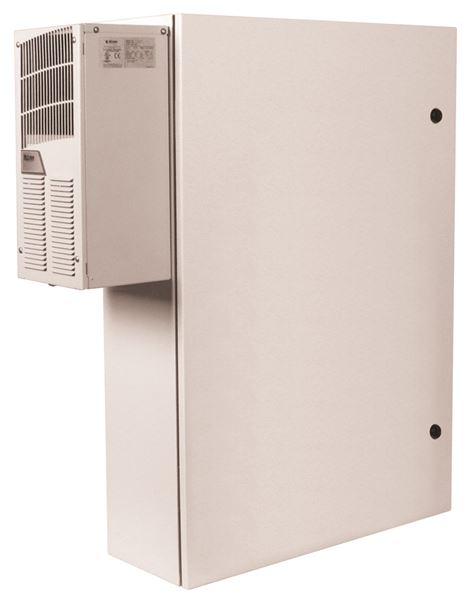

This AC enclosure allows alarm control panels to be protected from extreme temperatures or other areas requiring UL Type 4 protection. The extra large, super tough, heavy-duty metal enclosure guards against vandalism, either accidental or intentional, as well as dirt, dust and grime.

Unit of Measure

Specifications

Model Type

 N/A Metal Protective Cabinet with Air Conditioner without Window

Application

 N/A Polycarbonate Protection

Dimensions

Height

 N/A 36 in914 mm

Width

 N/A 24 in610 mm

Depth

 N/A 8.79 in161 mm

Air Conditioner (AC)/Heater

Construction of Air Conditioner (AC)/Heater

 N/A
  • Steel with Baked Enamel Finish
  • Low Ambient Operation
  • Ambient Corrosion Resistant

Heater Width

 N/A 6.35 in161 mm

Heater Height

 N/A 15.75 in400 mm

Backplate Width

 N/A 22 in559 mm

Backplate Height

 N/A 34 in864 mm

Output Energy

 N/A 800 Btu

Heater Power

 N/A 150 W

Operating AC Voltage

 N/A 115 V

Operating AC Voltage (1 Phase)

 N/A 240 V

Current

 N/A 3.6 A

Frequency

 N/A 60 Hz

Frequency (1 Phase)

 N/A 50 Hz60 Hz

AC/Heater Weight

 N/A 27 lb12.25 kg

Housing Dimensions

Unit Housing Width

 N/A 21 in533 mm

Unit Housing Height

 N/A 33 in838 mm

Unit Housing Depth

 N/A 6 in152 mm

Enclosure

Enclosure Weight

 N/A 47.5 lb21.55 kg

Construction of Enclosure

 N/A
  • 14 gauge Steel with Baked Enamel Finish

Backplate

Construction of Backplate

 N/A
  • Steel 0.109 in. (2.8 mm) Thick Steel
  • 22 x 34 in. (559 x 864 mm)
  • Baked Enamel Finish

Backplate Weight

 N/A 23 lb10.43 kg

Approvals and Warranty

Warranty1 N/A 2 y

Testing

 N/A It has been tested and approved by:
  • Enclosure - UL TYPE 4
  • AC/heater unit - UL Type 4
  • CE (AC unit only)

Key Features

General Information

 N/A
  • Protects fire alarm control panels and large electronic devices from extreme temperatures.
  • Cost effective, low maintenance and compact design.
  • Heavy-duty metal enclosure with AC/ heat.
  • Clear window allows the unit within to be seen and quickly identified. Housing protects a unit up to 21 x 33 x 6 in. with proper air flow.
  • The unit has two 1/4" turn latches to help prevent unauthorized entry.

Design

 N/A
  • AC unit is externally mounted to minimize space intrusion.

Construction

 N/A
  • Has durable finish to help protect against corrosion.

Installation

 N/A
  • Includes control panel mounting backplate.

Options

 N/A
  • Models available with or without AC/heater and with or without window.

Accessories

Accessories2 N/A KIT-H18070 - Key-Lock Assembly

How It Works

How It Works

 N/A To help maintain the correct range of operating temperatures, the AC/heater unit cycles as required and a fan runs continuously to sustain a uniform temperature inside the enclosure. The steel AC/heater is cost effective, low maintenance, is externally mounted to minimize space intrusion and has a low ambient operation package to help prevent it from freezing. This package allows the unit to work in cold temperatures without causing the AC/heater lines to freeze.

Note

Note

 N/A Protects a unit up to 21 x 33 x 6 in. (533 x 838 x 152 mm) allowing proper air flow.
  • 1 Two year guarantee on electromechanical and electronic components
  • 2 Includes a top or bottom plate mount option
