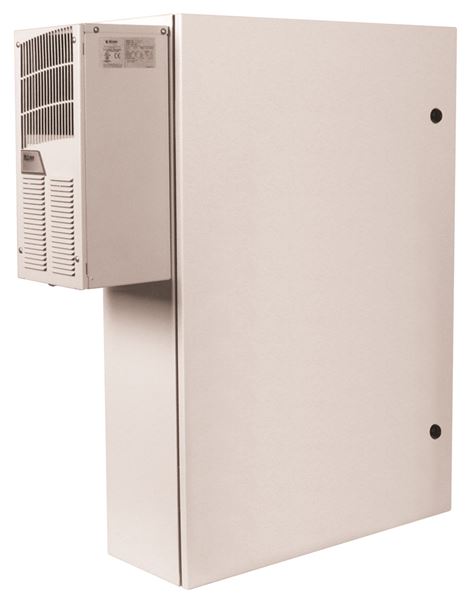

This AC/heated enclosure allows alarm control panels to be protected from extreme temperatures or other areas requiring UL Type 4 protection. The extra large, super tough, heavy-duty metal enclosure guards against vandalism, either accidental or intentional, as well as dirt, dust and grime.

Its size allows the enclosure to house significantly sized electronic devices with space to spare. This UL Type 4 enclosure mounts to the wall enabling the units to be protected in their designated location. Unlike competitive models, this enclosure has a clear window allowing the unit within to be quickly identified (model without window available). Both the enclosure and AC/heater unit have a durable finish to help protect against corrosion. The enclosure has two 1/4" turn latches to help prevent unauthorized entry.
Unit of Measure

Specifications

Model Type

 N/A Metal Protective Cabinet with Air Conditioner/Heat without Window

Application

 N/A Polycarbonate Protection

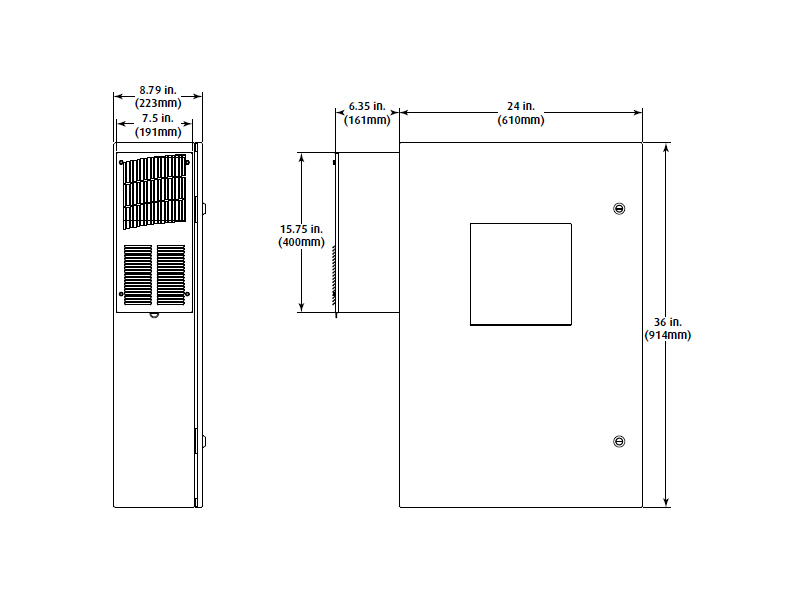

Dimensions

Height

 N/A 36 in914 mm

Width

 N/A 24 in610 mm

Depth

 N/A 8.79 in161 mm

Air Conditioner (AC)/Heater

Construction of Air Conditioner (AC)/Heater

 N/A
  • Steel with Baked Enamel Finish
  • Low Ambient Operation
  • Ambient Corrosion Resistant

Heater Width

 N/A 6.35 in161 mm

Heater Height

 N/A 15.75 in400 mm

Backplate Width

 N/A 22 in559 mm

Backplate Height

 N/A 34 in864 mm

Output Energy

 N/A 800 Btu

Heater Power

 N/A 150 W

Operating AC Voltage

 N/A 115 V

Operating AC Voltage (1 Phase)

 N/A 240 V

Current

 N/A 3.6 A

Frequency

 N/A 60 Hz

Frequency (1 Phase)

 N/A 50 Hz60 Hz

AC/Heater Weight

 N/A 27 lb12.25 kg

Housing Dimensions

Unit Housing Width

 N/A 21 in533 mm

Unit Housing Height

 N/A 33 in838 mm

Unit Housing Depth

 N/A 6 in152 mm

Enclosure

Enclosure Weight

 N/A 47.5 lb21.55 kg

Construction of Enclosure

 N/A
  • 14 gauge Steel with Baked Enamel Finish

Backplate

Construction of Backplate

 N/A
  • Steel 0.109 in. (2.8 mm) Thick Steel
  • 22 x 34 in. (559 x 864 mm)
  • Baked Enamel Finish

Backplate Weight

 N/A 23 lb10.43 kg

Approvals and Warranty

Warranty1 N/A 2 y

Testing

 N/A It has been tested and approved by:
  • Enclosure - UL TYPE 4
  • AC/heater unit - UL Type 4
  • CE (AC unit only)

Key Features

General Information

 N/A
  • Protects fire alarm control panels and large electronic devices from extreme temperatures.
  • Cost effective, low maintenance and compact design.
  • Heavy-duty metal enclosure with AC/ heat.
  • Clear window allows the unit within to be seen and quickly identified. Housing protects a unit up to 21 x 33 x 6 in. with proper air flow.
  • The unit has two 1/4" turn latches to help prevent unauthorized entry.

Design

 N/A
  • Heater unit is externally mounted to minimize space intrusion.

Construction

 N/A
  • Has durable finish to help protect against corrosion.

Installation

 N/A
  • Includes control panel mounting backplate.

Options

 N/A
  • Models available with or without AC/heater and with or without window.

Accessories

Accessories2 N/A KIT-H18070 - Key-Lock Assembly

How It Works

How It Works

 N/A To help maintain the correct range of operating temperatures, the AC/heater unit cycles as required and a fan runs continuously to sustain a uniform temperature inside the enclosure. The steel AC/heater is cost effective, low maintenance, is externally mounted to minimize space intrusion and has a low ambient operation package to help prevent it from freezing. This package allows the unit to work in cold temperatures without causing the AC/heater lines to freeze.

Note

Note

 N/A Protects a unit up to 21 x 33 x 6 in. (533 x 838 x 152 mm) allowing proper air flow.
  • 1 Two year guarantee on electromechanical and electronic components
  • 2 Includes a top or bottom plate mount option
