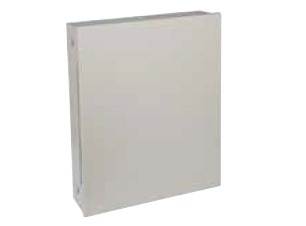

These enclosures for electrical and electronic equipment (up to 1000 V) provide personal protection from hazardous parts and provides a degree of protection to enclosed equipment. EM models are constructed for indoor use. All enclosures offer protection against vandalism, either accidental or intentional. The size allows the enclosures to house significantly sized electronic devices with space to spare. Enclosures mount to the wall enabling units to be protected in their designated location.

They have a durable finish to help protect against corrosion.
Unit of Measure

Specifications

Model Type

 N/A Metal Protective Cabinet 17 Gauge

Application

 N/A Polycarbonate Protection

Dimensions

Height

 N/A 18.20 in462 mm

Width

 N/A 15.28 in388 mm

Depth

 N/A 4.30 in109 mm

Material

Material

 N/A Heavy-duty enclosures are constructed with a powder coated metal to help protect against corrosion

Approvals and Warranty

Testing

 N/A
  • UL, cUL Listed, Type 1

Key Features

General Information

 N/A
  • Can be used in all wiring applications as a junction, splice or power supply cabinet

Design

 N/A
  • Cost effective, low maintenance and compact design.
  • Continuous piano type hinge.

Construction

 N/A
  • Heavy-duty enclosures are constructed with a powder coated metal to help protect against corrosion.
  • Metal thickness meets or exceeds Type 1 requirements.

Installation

 N/A
  • Enclosures mount to the wall enabling units to be protected in their designated location.

Options

 N/A
  • Thumb or key lock (option sold separately).
    EM Models:
  • Backplate (sold separately) may be mounted into cabinet.
  • Back design helps accommodate uneven walls or mounting surface.
  • Top, side and bottom knockouts are 1/2 Inch (in) and 3/4 Inch (in).
  • UL, cUL Listed, Type 1 (see approvals)
    • 7560/7561 Models:
  • UL Listed, Type 4.
  • Includes backplate and two 1/4 turn latches.

Accessories

Accessories1 N/A KL544 - Key lock
TL644 - Thumb lock
STI-MBP1316 - 14 gauge backplate for STI-EM151804
KIT-H18019 - Standoff Kit for MBPs, qty. 6
  • 1 Includes a top or bottom plate mount option
