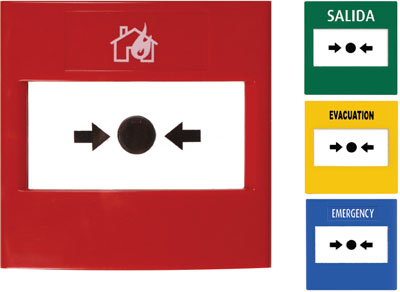

The ‘ReSet’ is a unique switch that mimics the feel of breaking glass while offering the user the benefits and environmental advantages of a resettable operating element.

The ‘ReSet’ uses a simple yet ingenious patented mechanism which consists of a rigid plastic operating element and an over center spring mechanism. This arrangement provides real action upon operation and simulates break glass activation.

An activation indicator drops into view at the top of the window after the ‘ReSet’ has been operated. The unit is then simply reset with a key and is again ready for use.
Unit of Measure

Specifications

Direct Current (DC) Current Rating (All Series) at 12 to 24 Volts (V)

 N/A 3 A

AC Current Rating (Series 02 and 11) at 125 to 250 Volts (V)

 N/A 3 A125 to 250 V

Low Current Rating (All Series) at 5 to 12 Volts (V)

 N/A 1 to 100 mA5 to 12 V

Housing and Mounting Box Material

 N/A Polycarbonate

Electrical Contact Material

 N/A Silver Plated Brass

Operating Temperature

 N/A -20 to 65 ºC-4 to 149 ºF

Installation Terminal Conductor Size

 N/A 0.5 to 2.5 mm

Color

 N/A Blue Green Red White Yellow

Overall Depth - Cover

 N/A 0.91 in23 mm

Overall Depth - Back Box

 N/A 1.38 in35 mm

Red only Certification

 N/A EN54-11, Cert No. 653a/02 for Red Series 01 only
Prefix1 N/A RP

Color Options

 N/A Blue Green Red White Yellow

Series and Electrical Arrangement

 N/A Conventional fire model includes two resistor values 470 & 680 ohms Double Pole Changeover Single Pole Changeover

Cover Options

 N/A Call Point Stopper® (STI-6930 or STI-6931) Integral cover Mini Stopper II with Horn (STI-6600 or STI-6605) Mini Stopper II® without Horn (STI-6540 or STI-6545) Mini Stopper® (STI-6830 or STI-6831) Mini Weather Stopper® (STI-6525 or STI-6535) No cover

Dimensions

Overall Width

 N/A 3.43 in87 mm

Overall Height

 N/A 3.43 in87 mm

Mounting

Mounting

 N/A Flush Mount Flush or Surface with Back Box Surface Mount

Features

Features

 N/A Glass appearance maintains operator deterrence. Low profile, heavy-duty terminations - Two built-in resistor values. Positive activation that mimics the feel of breaking glass. Simple key to reset operating element - no broken glass. Visible warning flag confirms activation.

Key Features

Options

 N/A Available in five colors. Double pole version available.
  • 1 EG: RP-RS-01-CSS = ReSet Point, Red, Surface Mounted, Series 01 with optional Mini Stopper® II with Horn Cover
