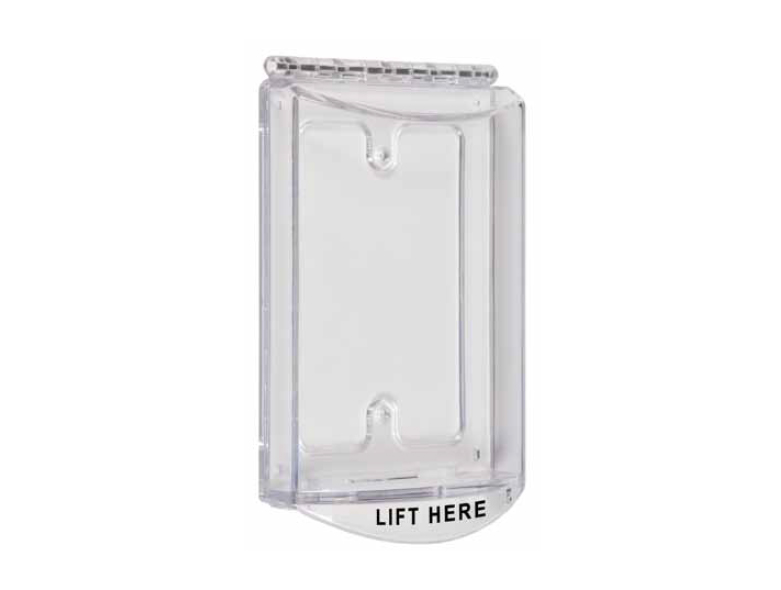

Inexpensive and highly durable, this cover with continuous piano style hinge can be used in a wide range of applications. It can take hard knocks in stride while protecting push buttons, electrical switches, digital keypads, electrical outlets, smaller-size pull stations, biometrics and volume or lighting controls to name a few. The cover, hinge and frame are molded of super tough polycarbonate material. Comes complete with installation screws.
Unit of Measure

Specifications

Model Type

 N/A Single Gang Protective Cover

Operating Temperature

 N/A -40 to 121 ºC-40 to 250 ºF
Warranty1 N/A 3 y

Application

 N/A Access Housing

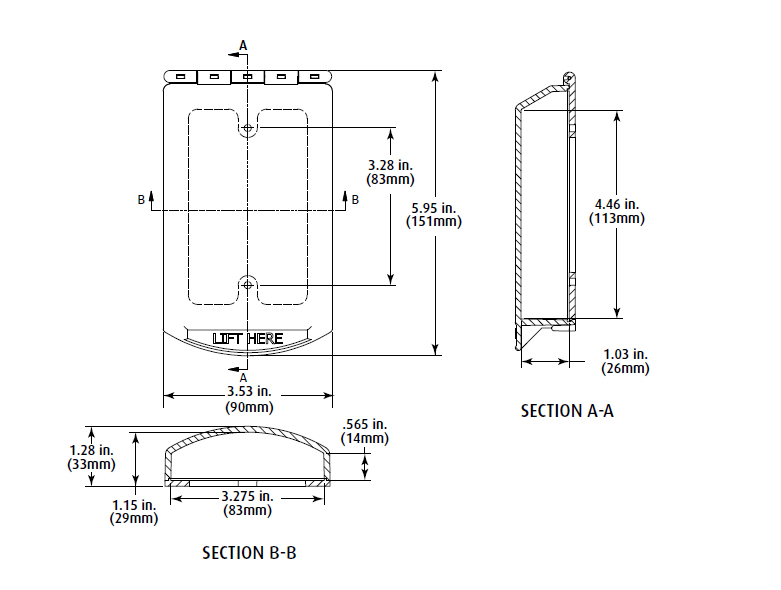

Dimensions

Overall Width

 N/A 3.53 in90 mm

Overall Height

 N/A 5.95 in151 mm

Overall Depth

 N/A 1.28 in33 mm

Key Features

General Information

 N/A
  • Protects against both vandalism and accidental damage.
  • Helps stop ice and snow from making keypad units difficult to operate.

Design

 N/A
  • Can take hard knocks in stride.

Construction

 N/A
  • Molded from tough polycarbonate material.

Installation

 N/A
  • Fast, easy installation.
  • Cover includes mounting frame.

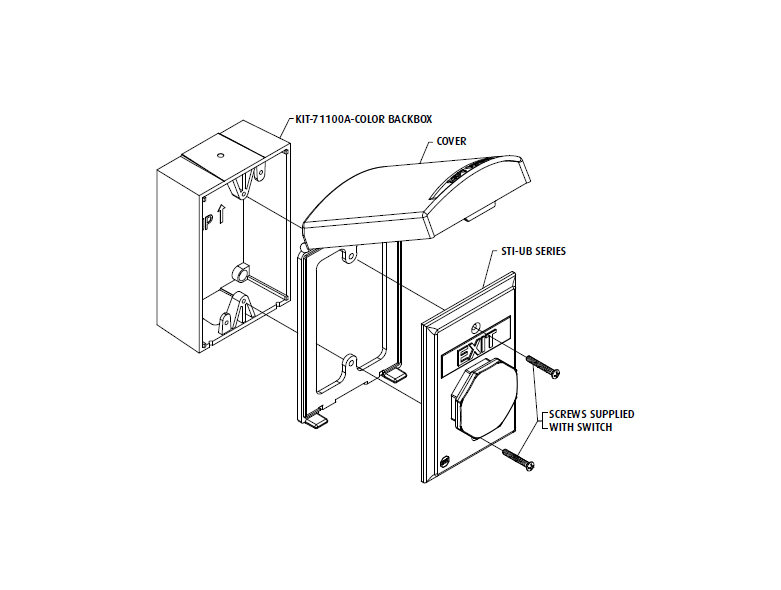

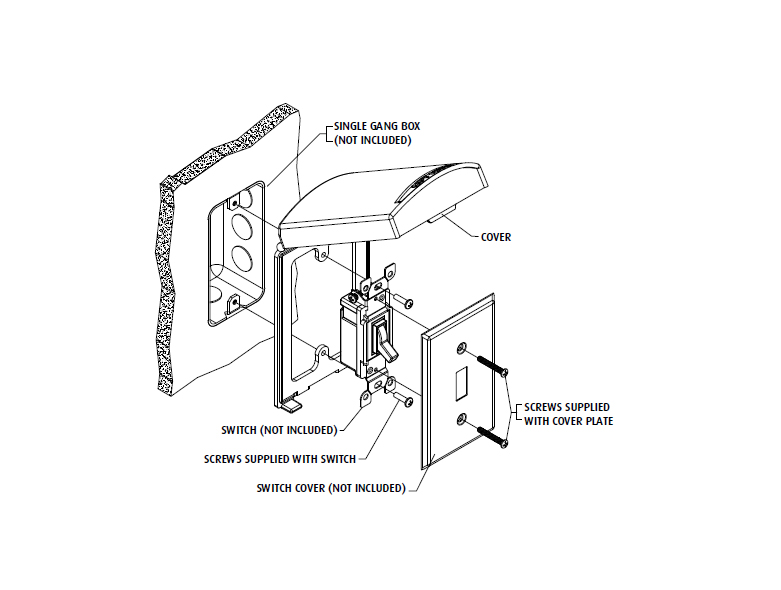

  • Mounts directly through product mounting plate to electrical box.
  • Cover comes complete with piano hinge, mounting plate and hardware.
  • Typical working properties of polycarbonate are -40 º to 250 ºF (-40 º to 121 ºC).

Options

 N/A

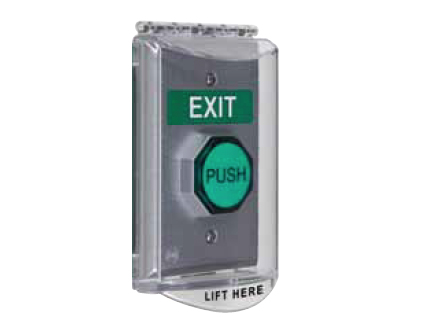

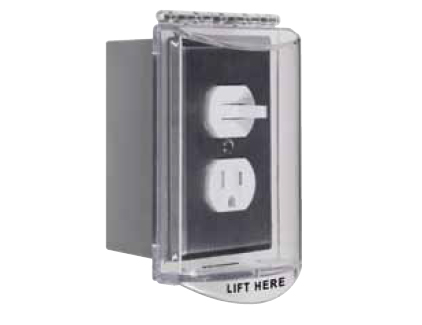

  • Many uses include protecting push button units, smaller-sized pull stations, keypads, electrical outlets, volume or lighting controls and shutdown switches.
  • Can be secured with Break-Away Seal Kit (SUB-65).

Additional Information

Additional Information

 N/A As all STI protective covers, the Single-Gang Protective Cover is backed by a three year guarantee against breakage in normal use. It is also highly cost effective and easy to install.
  • 1 Three year guarantee against breakage of polycarbonate in normal use.
