Molded of polycarbonate material, these protective covers are recommended for areas where abuse to a thermostat is a problem. This may include vandalism, accidental damage or costly, annoying tampering by employees and others. Especially useful where thermostats are located in public areas, the devices are easy to install. Holes in the frame allow air to circulate freely for proper operation of protected thermostats or energy sensors. An interior wall on the frame prevents objects from entering the cover.
Unit of Measure

Specifications

Model Type

N/A Thermostat Protector, Large with Key Lock, Clear Color

Color

N/A Clear
Warranty1 N/A 3 y

Application

N/A Polycarbonate Protection

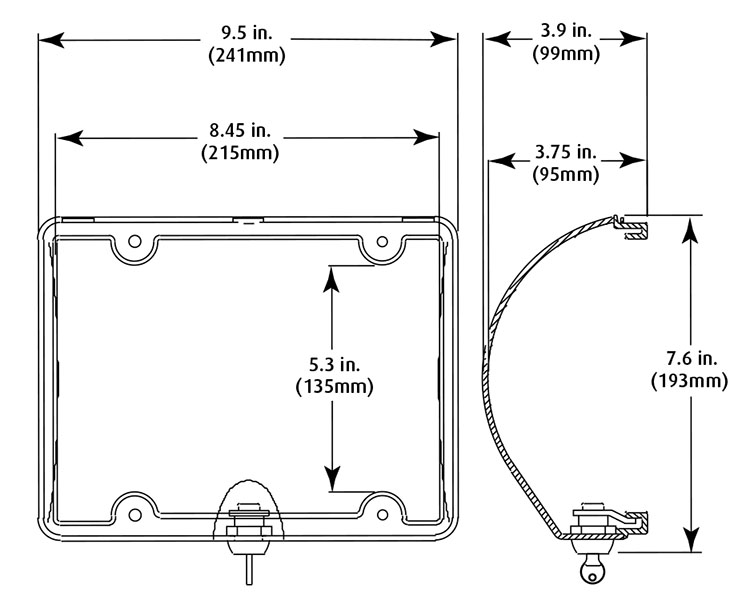

Dimensions

Overall Width

N/A 9.5 in241 mm

Overall Height

N/A 7.6 in193 mm

Overall Depth

N/A 3.9 in99 mm

Key Features

General Information

N/A
  • Offers excellent protection against tampering, abuse and accidental damage without affecting operation of the thermostat.

Design

N/A
  • Holes in the frame allow air to circulate freely.
  • Includes a lock and key assembly

Construction

N/A
  • Inner wall construction prevents tampering with dials and levers

Installation

N/A
  • Easy and quick installation.
  • Shipped complete with anchors and screws.
  • Typical working properties of polycarbonate are -40 ºF to 250 ºF (-40 ºC to 121 ºC).

Options

N/A
  • Models available for flush and surface mounted applications.
  • Spacers available to accommodate exposed conduit.

Accessories

Accessories

N/A KIT-900 - Clear, 2" Spacer for STI-9110
KIT-H18053 - Two replacement keys

Additional Information

Additional Information

N/A Three Year Guarantee on Cover
As all STI polycarbonate covers, these tough units are backed by a three year guarantee against breakage in normal use. The Thermostat Protectors are shipped complete with all mounting hardware.
  • 1 Three year guarantee against breakage of polycarbonate in normal use
