The pneumatic button has a mechanical adjustable timer which opens or closes a circuit and has a timed delay before reset. It does not require power for timing operation and has a timer life of over 1,000,000 operations. When local code or authority requires a pneumatic button be used, this device solves the problem.
Unit of Measure

Specifications

Button Type

 N/A 1.5 Inch (in) Universal Pneumatic Button

Operating Temperature

 N/A -9 to 49 ºC15 to 120 ºF

Pneumatic Timer Range

 N/A 2 to 60 s

Repeat Accuracy (±)

 N/A 10 %

Dimensions

Overall Width

 N/A 3.22 in82 mm

Overall Height

 N/A 4.83 in123 mm

Overall Depth

 N/A 2.38 in61 mm

Approvals and Warranty

Warranty1 N/A 1 y

Testing

 N/A It has been tested and approved or listed by:
  • ADA for operation

How It Works

How It Works

 N/A The installer simply has to choose which lens cover and interchangeable message plate works best for the customers need, and easily snap them in place. This allows the button to be mounted in a matter of minutes instead of waiting weeks for a specific button to be ordered and delivered.

Key Features

General Information

 N/A
  • Pneumatic button offers many options to provide just what a customer wants in one convenient package.
  • Has a timer life of over 1,000,000 operations.
  • Helps solve the problem of local code or authority requiring a pneumatic button be used.

Construction

 N/A

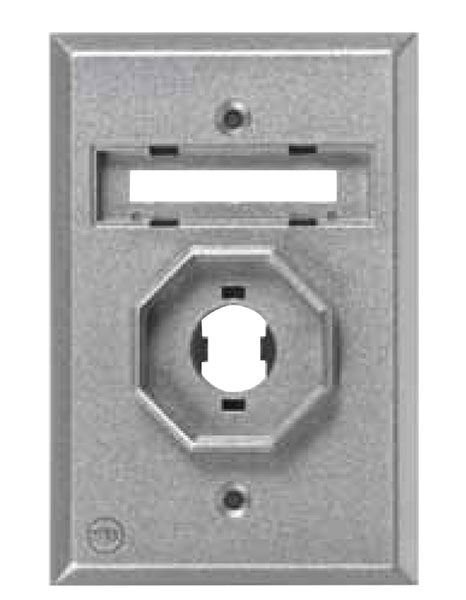

  • Faceplate constructed of cast aluminum.

Installation

 N/A
  • Ready to be assembled out of box and easily installed within minutes on site.
  • Operating Temperature is 15º to 120 ºF (-9º to 49 ºC).

Electronics

 N/A
  • Mechanical adjustable timer opens or closes a circuit and has a timed delay before reset.
  • Power not required for timing operation.
  • Pneumatic timer range: 2-60 seconds (±15%). Repeat accuracy ±10%.

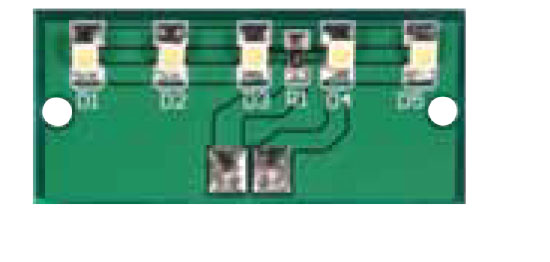

  • Illuminated message light kit (requires 12-24 V DC/V AC).

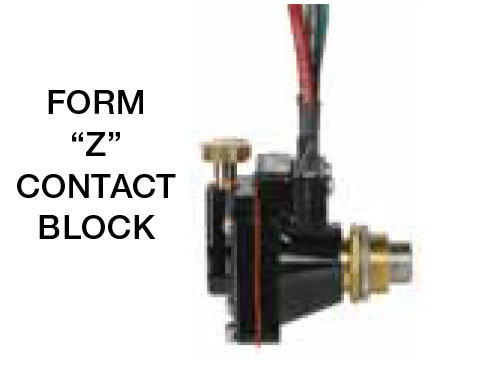

  • Independent Form "Z" contacts (one N.O., one N.C.) rated 10 A at 240 V AC.

Options

 N/A Offers over 200 different combinations.

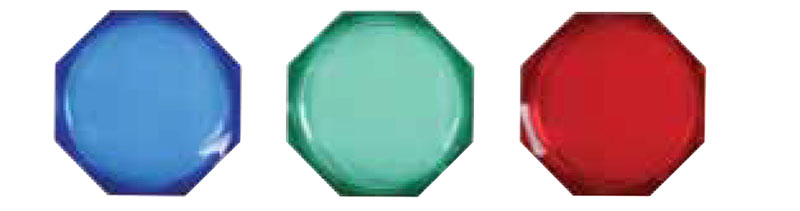

  • Three different lens covers included - red, green and blue.

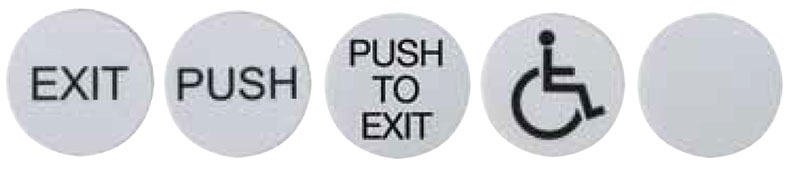

  • Five button messages included - Exit, Push, Push to Exit, handicap symbol and blank.

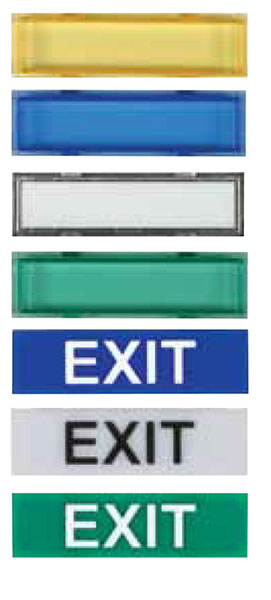

  • Seven illuminated message inserts in green, blue, yellow, white and clear.

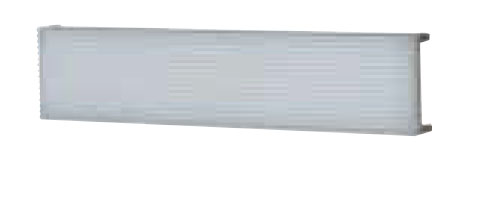

  • Plate messages inscribed with EXIT and translucent blanks (allowing for custom labels). Offers over 200 different combinations.
  • Three different lens covers included - red, green and blue.
  • Five button messages included - Exit, Push, Push to Exit, handicap symbol and blank.
  • Seven illuminated message inserts in green, blue, yellow, white and clear.
  • Plate messages inscribed with EXIT and translucent blanks (allowing for custom labels).

Additional Information

Additional Information

 N/A Universal Pneumatic Button helps eliminate having to stock dozens of push buttons, and wasting precious time and money tracking down just the right button for a customer. It offers over 200 options to provide just what a customer wants in one convenient package. It is ready to be assembled out of box and is easily installed within minutes on site. The UB-1PN offers many different combinations for the price of a standard one configuration button. The faceplate is constructed of cast aluminum metal, allowing it to take tough knocks in stride, and is slightly oversized to cover old plate installation marks. Button package includes: faceplate, three push buttons, five button messages and seven changeable illuminated activation messages.
  • 1 One year guarantee on electromechanical and electronic components.
