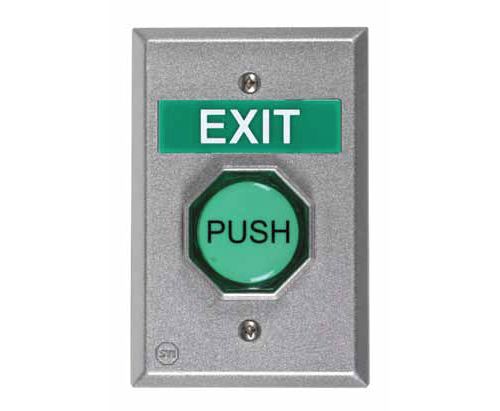

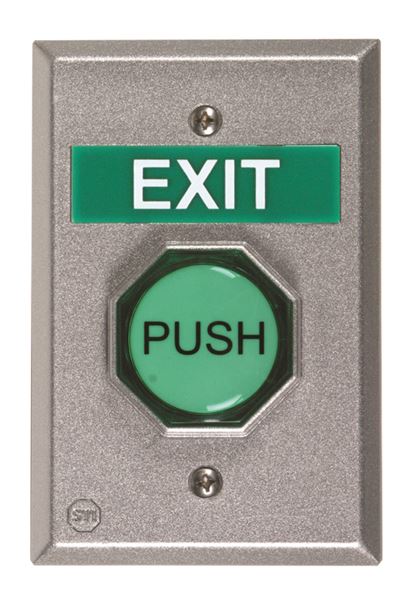

This momentary button helps eliminate having to stock dozens of push buttons, and wasting precious time and money tracking down just the right button for a customer. It offers many options to provide just what a customer wants in one convenient package. Button is ready to be assembled out of box and is easily installed within minutes on site.

Universal Button offers over 300 different combinations for the price of a standard one configuration button. The faceplate is constructed of cast aluminum metal, allowing it to take tough knocks in stride, and is slightly oversized to cover old plate installation marks. Button package includes: faceplate, three illuminated push buttons, five changeable button messages and ten changeable illuminated activation messages.
Unit of Measure

Specifications

Model Type

 N/A Universal Button

Operating Temperature

 N/A -40 to 85 ºC-40 to 185 ºF

Dimensions

Overall Width

 N/A 3.22 in82 mm

Overall Height

 N/A 4.83 in123 mm

Overall Depth

 N/A 2.195 in56 mm

Approvals and Warranty

Warranty1 N/A 1 y

Testing

 N/A It has been tested and approved or listed by:
  • UL/cUL File S7255
  • UL 2017
  • UL 294 (models ending with LTUL)
  • CSA C22.2 No. 205
  • ADA for operation
  • UL Listed to U.S. and Canadian safety standards.
  • LTUL models Listed for access control.

Key Features

General Information

 N/A
  • Offers over 300 different combinations.
  • Momentary button offers many options to provide just what a customer wants in one convenient package.
  • 100,000 operations.

Construction

 N/A
  • Faceplate constructed of cast aluminum.

Installation

 N/A
  • Temperature: -40º to 185 ºF (-40º to 85 ºC).
  • Mounts to standard electrical handi box.
  • Single gang plate slightly oversized to cover old plate installation marks.

Electronics

 N/A
  • Illuminated 12/24 Volt LED button and illuminated message light kit.
  • Two sets of independent Form "C" contacts.
  • Contacts rated 10 A at 125/250 V AC, 1/2 HP, 6 A at 30 V DC.

Options

 N/A
  • Five inserts for the button included - EXIT, PUSH, PUSH TO EXIT, handicap symbol and blank.
  • Three different lens covers included - red, green and blue.
  • Ten color coated message inserts in green, blue, yellow and white.
  • Plate messages inscribed with EXIT, EMERGENCY and translucent blanks (allowing for custom labels).

Accessories

Accessories

 N/A LT-1 - Latching/Timer Module
UB-2LENS - 2" Lens
UB-1CL-COLOR - Custom Label applied to blank, changeable message plates (blue, green, white or yellow)
KIT-UB-1C - Contact Block
KIT-71100A-COLOR - Color Match Back Box Kit (red, blue, green, white or yellow)
E10147 - 24 Volt LED, White (standard)
E10145 - 24 Volt LED, Red
E10141 - 24 Volt LED, Blue
E10143 - 24 Volt LED, Green
E10144 - 12 Volt LED, Red
E10140 - 12 Volt LED, Blue
E10142 - 12 Volt LED, Green
STI-6518 - Bopper Stopper® Protective Cover

How It Works

How It Works

 N/A The installer simply has to choose which lens cover, button insert and interchangeable message plate works best for the customers need, and easily snap them in place. This allows the button to be mounted in a matter of minutes instead of waiting weeks for a specific button to be ordered and delivered.
  • 1 One year guarantee on electromechanical and electronic components.
