These waterproof, multipurpose sealed housings mount to either a wall or pedestal and are ideal for a variety of access control equipment. Molded of thick polycarbonate material which is backed by a three year guarantee against breakage in normal use.

Housings are available in two depths. Back box "A" provides 4.25 inches of depth.
Unit of Measure

Specifications

Model Type

 N/A Housing, Pedestal Mount, Adapter Plate, "A" Back Box

Working Temperature

 N/A -40 to 250 ºF-40 to 121 ºC
Warranty1 N/A 3 y

Application

 N/A Polycarbonate Protection

Dimensions

Height

 N/A 6.46 in164 mm

Width

 N/A 8.44 in214 mm

Depth

 N/A 4.12 in104 mm

Key Features

General Information

 N/A
  • Helps solve installation problems for a variety of access control equipment.

Design

 N/A
  • STI-7516 is designed to be installed on a mounting pedestal and includes adapter plate (SUB-318).

Construction

 N/A
  • NEMA 4.
  • Housings are water resistant to provide added protection for these important devices.

Installation

 N/A
  • Mounting hardware is included.
  • Typical working properties of polycarbonate are -40 º to 250 ºF(-40 º to 121 ºC).

Options

 N/A
  • Available in two depths.

How It Works

How It Works

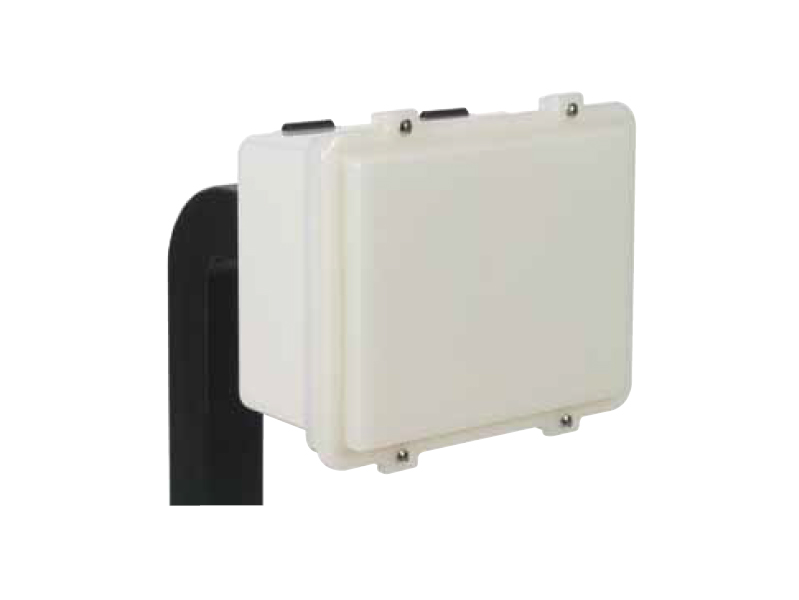

 N/A The STI-7516 can be installed to a mounting pedestal and is ideal for a gate entry, call switch or any electrical device configuration.

Accessories

Accessories

 N/A KIT-318 - Adapter plate used for mounting "A" or "F" back box to pedestal

Note

Note

 N/A Housings do not include pedestal.
  • 1 Three year guarantee against breakage of polycarbonate in normal use
