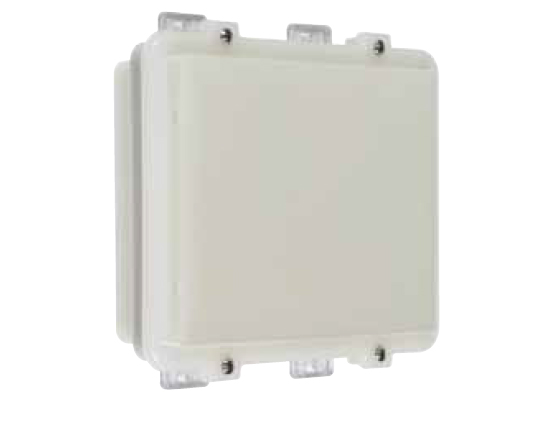

  • STI 7515F Access Control Housings

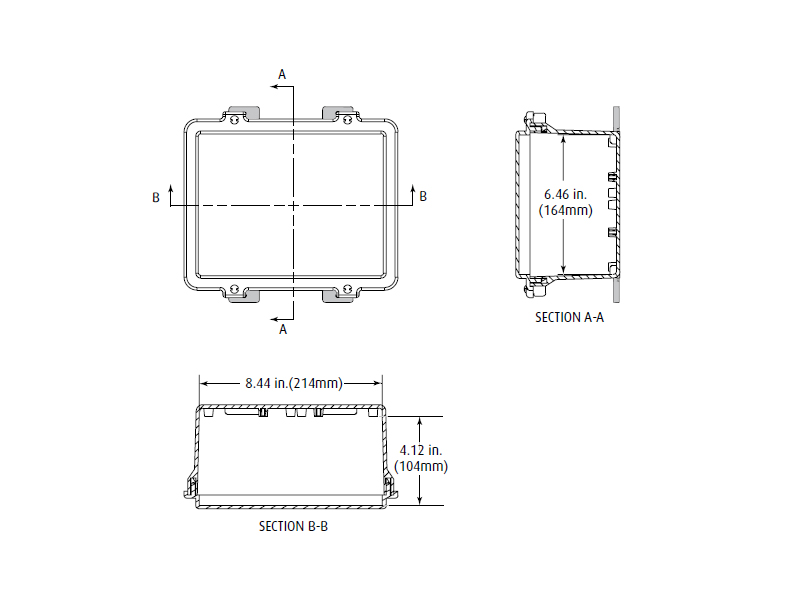

  • Dimensional Drawing "A" Back Box
These waterproof, multipurpose sealed housings mount to either a wall or pedestal and are ideal for a variety of access control equipment. Molded of thick polycarbonate material which is backed by a three year guarantee against breakage in normal use.

Housings are available in two depths. Back box "A" provides 4.25 inches of depth and back box "F" provides 2.0 inches of depth.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Model Type

Height

Width

Working Temperature

N/A STI-7515A Access Control Housing Enclosure N/A Housing, Wall Mount, "A" Back Box N/A 6.46 in164 mm N/A 8.44 in214 mm N/A -40 to 250 ºF-40 to 121 ºC
N/A STI-7515F Access Control Housing Enclosure N/A Housing, Wall Mount, "F" Back Box N/A 6.57 in166 mm N/A 8.55 in217 mm N/A -40 to 250 ºF-40 to 121 ºC
N/A STI-7516A Access Control Housing Enclosure N/A Housing, Pedestal Mount, Adapter Plate, "A" Back Box N/A 6.46 in164 mm N/A 8.44 in214 mm N/A -40 to 250 ºF-40 to 121 ºC
N/A STI-7516F Access Control Housing Enclosure N/A Housing, Pedestal Mount, Adapter Plate, "F" Back Box N/A 6.57 in166 mm N/A 8.55 in217 mm N/A -40 to 250 ºF-40 to 121 ºC
